Firefly 2.5
The power assist attachment will take you through the grass and up hills

















Firefly 2.5

WARRANTY
Features
- Latches on/off in seconds
- Up to 12 mph
- Color display screen
- Forward and reverse throttles
- Rolling kickstands for parking and storage
- Dual disc brakes
- Tire: 12.5" x 3"
- Aluminum frame
Key Specs
- Drive Range: 15
- Top Speed: 12 mp
- Weight capacity: 280 lbs.
- Starting Weight: 25 lbs.
Manuals, Literature & Videos
Overview

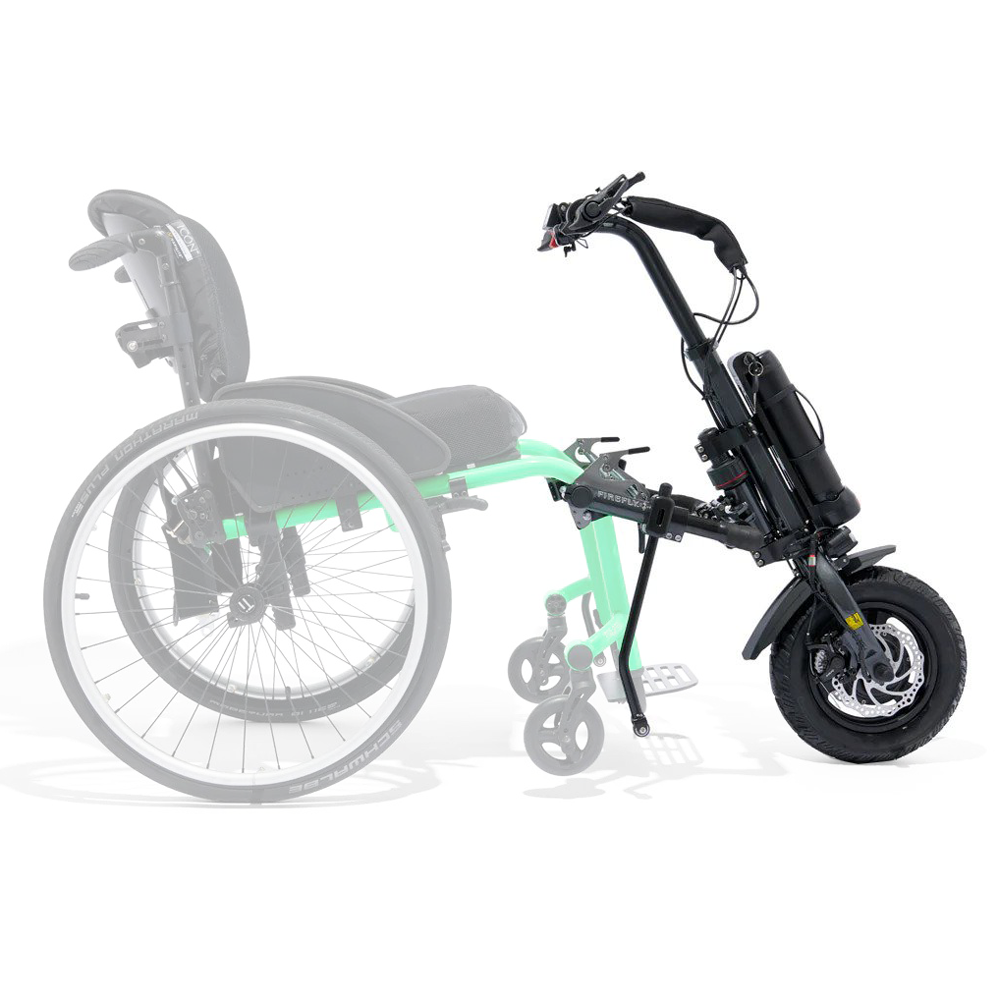

The RIO Mobility Firefly 2.5 is a compact, lightweight electric power assist designed for taking trips up to 13 miles and has a top speed of 12 mph. A full charge can take up to 3 hours. Suitable for manual wheelchair users looking for a convenient mode of transportation. Pick between 4 available colors to fit your liking.
What Makes This Different
The Firefly 2.5 features a foldable design, making it easy to store and transport when not in use. It also has a sturdy aluminum frame and 12.5" tire for a smooth and comfortable ride. Choose between a road tire that is slick or a knobby off-road tire for your traveling purposes. Dual disc brakes make stopping easier and handlebar grips assist with being able to hold onto.
Why We Like It
Other features of the RIO Mobility Firefly 2.5 include a digital display that shows speed, battery life, and other important information. Convenient kickstands make for easier transfers. The scooter is powered by a 350W brushless DC motor and a 36V, 2A input, which can be charged in as little as 3 hours. It also has 2 LED headlights, for improved visibility and safety while riding at night.
There are five points to consider in order to determine whether your wheelchair is compatible with our wheelchair attachments:
1) Seat width: must be between 14 to 22 in -or- 35.5 to 55.8 cm (measured end-to-end on the width of your seat cushion).
2) Tube diameters: currently supported tubing diameters are: (printable tubing ruler on next page).
• 7/8 in -or- 22.2 mm
• 1 in -or- 25.4 mm
• 1.125 in -or- 28.6 mm
• 1.2 in -or- 30.5 mm
• 1.25 in -or- 31.8 mm
If your tubing is a different shape or diameter contact sales@riomobility.com
3) Tube clearance: to attach the clamps, 1.25 in -or- 32 mm clearance is required. Diagrams with examples of tube clearances are given in the following pages.
4) Tube angle: ideally the tubes should be vertical or close to vertical. However, installation is possible with tubes that taper inwards with slight angles, the larger the taper angle the more challenging it is to use our “Quick Release Coupler” attachment.
5) Footrests on folding chairs: removable footrests can pose challenges for our clamp installation, so please consult below where examples of wheelchair designs with removable footrests are given. Never mount our clamps directly onto removable footrests as they were not designed to take such riding forces.
Installation Video
